Sampling basket for in situ sampling of road runoff in the gully

#TSS #online #Stainless steel sieve #fine solids #flow meter

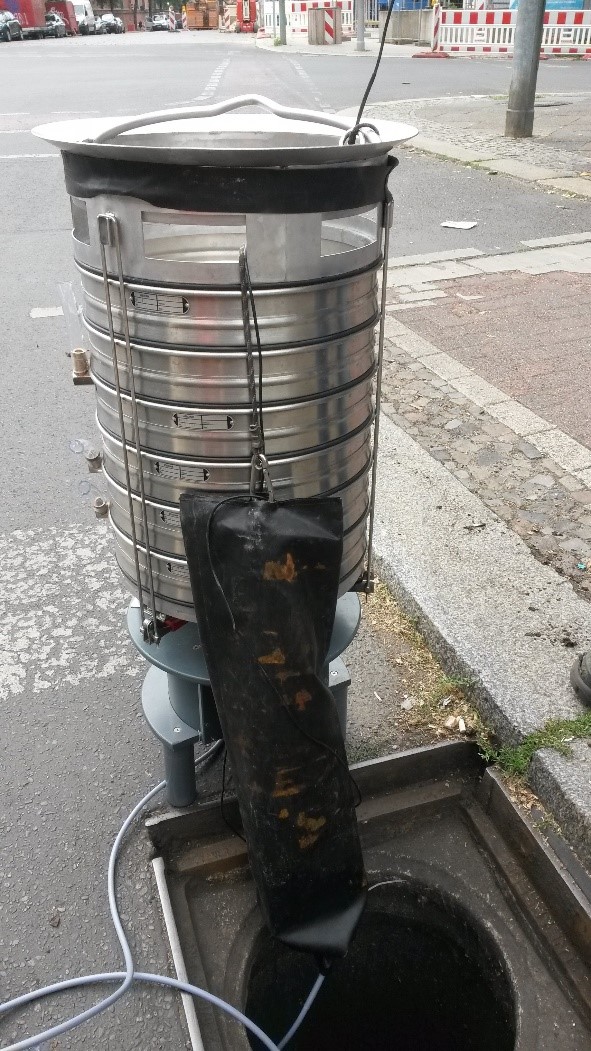

Sampling basket for in situ sampling of road runoff

Automatically sampling road runoff from a rain event from the first drop to the last in situ is possible with the sampling basket in any standard storm drain.

With the aim of capturing tyre and road wear particles from road runoff a sampling basket for standard road gullys was developed, together with GKD and Ori.

It allows to fractionally sample a rainfall event directly in the gully. (lower separation limit ≤10μm). The development was initially carried out virtually by creating different geometries and simulation models in order to find the ideal flow guidance on the one hand and on the other hand the fractionation of the collected particles.

Subsequently, the most promising design was implemented in GKD's filter construction workshop at GKD.

Underneath the sampling basket, an explosion-proof measuring ORI measuring technology was developed, which records the flow rate data and transmits it wirelessly via GPRS.

The function of the sampling basket was tested under defined conditions at the test stand (Chair of Urban Water Management of the TU Berlin).

Water resource: Rainwater
Type of product:
  • Monitoring & analytics
TRL: 8
    TRL (Technology Readiness Level)
  • TRL 1 - Basic principles observed
  • TRL 2 - Technology concept formulated
  • TRL 3 - Experimental proof of concept
  • TRL 4 - Technology validated in lab
  • TRL 5 - Technology validated in relevant environment (industrially relevant environment in the case of key enabling technologies)
  • TRL 6 - Technology demonstrated in relevant environment (industrially relevant environment in the case of key enabling technologies)
  • TRL 7 - System prototype demonstration in operational environment
  • TRL 8 - System complete and qualified
  • TRL 9 - Actual system proven in operational environment (competitive manufacturing in the case of key enabling technologies; or in space)
Application sector: Cities and municipalities, Industry, Natural water environment, Water resource management
Funding measure: Plastics in the environment
Project: RAU

Contact and partners


  • RAU,
  • Gustav-Meyer-Allee 25,
  • 13355 Berlin
https://www.rau.tu-berlin.de/menue/reifenabrieb_in_der_umwelt/
Daniel Venghaus
  • daniel.venghaus@tu-berlin.de
  • 030-314-72247

GKD - GEBR. KUFFERATH AG
ORI Abwassertechnik GmbH & Co. KG,
Hille
