Gravity Operated Membrane Bioreactor for Wastewater Treatment

#Wastewater Treatment #Membrane #Container #Sewage

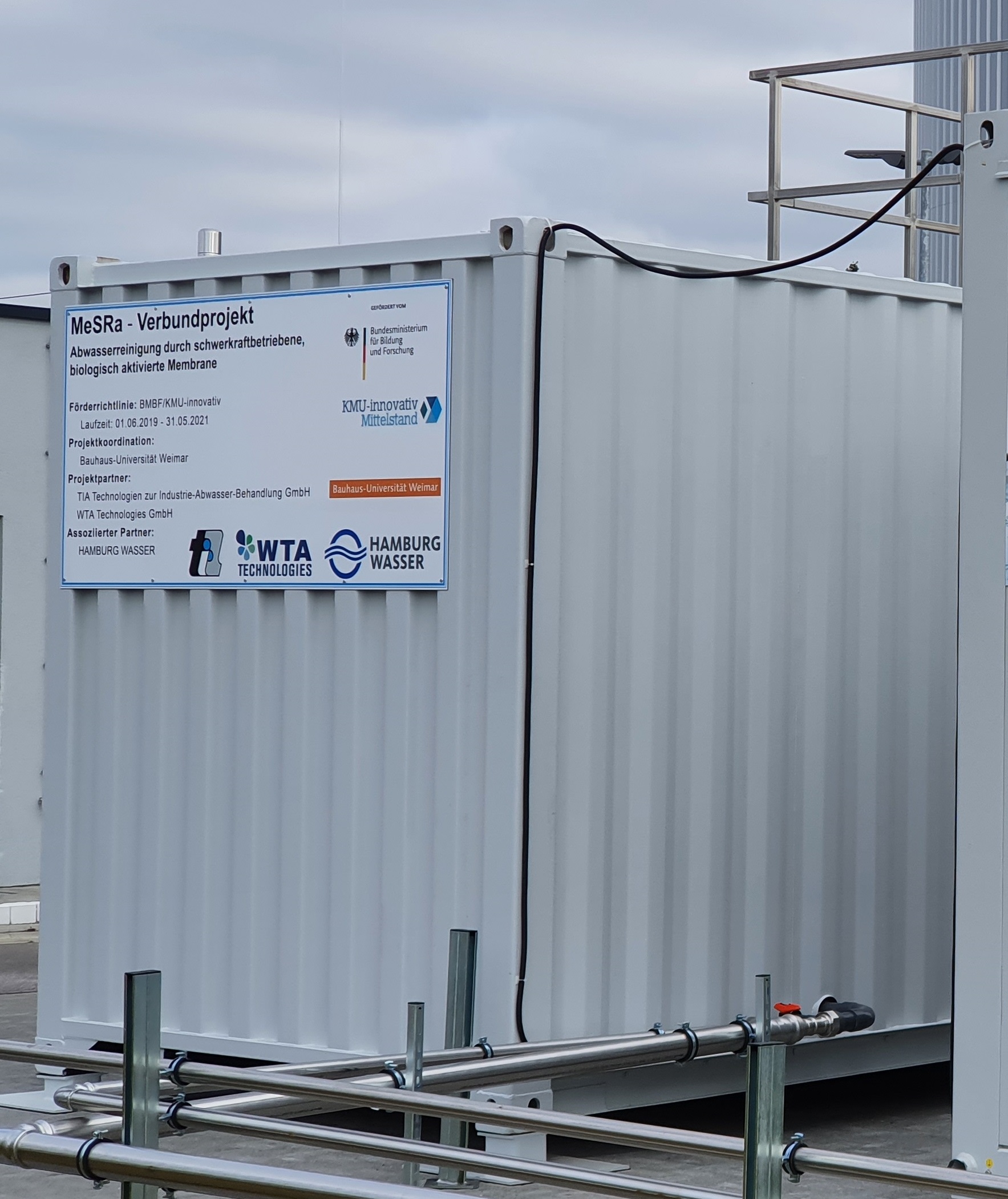

On this picture, two containers are depicted at an operation site. They are connected by pipes and set on adjustable foots.
Gravity based and containerized membrane bioreactor treatment plant for industries and municipalities used in the research project "MeSRa".

The containerized wastewater treatment plant treats wastewater in a biological process. The separation of biomass and water is achieved by membrane technology ensuring an effluent at a very high standard. This plant is not operated using elaborate machinery, but using gravity based procedure. Therefore, significantly lower OPEX will be achieved.

The process with a gravity flow based membrane bioreactor leads to lower operating expenditures as well as lower operation efforts compared to conventional membrane technology. Especially when operating personnel is not specifically trained for membrane plants, this plant type is still suitable for a reliable operation.

The reactor is operated without backwash or chemical treatment of the membranes. The energy demand for the establishment of a cross-flow is also reduced significantly.

Compared to conventional membrane systems this leads to a lower flux, but it is measured up by significantly lower operating expenditures and an increased lifespan of the membranes.

Water resource: Treated water, Wastewater
Type of product:
  • Technologies & processes
TRL: 6
    TRL (Technology Readiness Level)
  • TRL 1 - Basic principles observed
  • TRL 2 - Technology concept formulated
  • TRL 3 - Experimental proof of concept
  • TRL 4 - Technology validated in lab
  • TRL 5 - Technology validated in relevant environment (industrially relevant environment in the case of key enabling technologies)
  • TRL 6 - Technology demonstrated in relevant environment (industrially relevant environment in the case of key enabling technologies)
  • TRL 7 - System prototype demonstration in operational environment
  • TRL 8 - System complete and qualified
  • TRL 9 - Actual system proven in operational environment (competitive manufacturing in the case of key enabling technologies; or in space)
Application sector: Cities and municipalities, Industry
Funding measure: KMU-innovativ
Project: MeSRa

Contact and partners


Logo TIA Technologies for Industrial Wastewater Treatment GmbH
  • TIA Technologies for Industrial Wastewater Treatment GmbH,
  • Bergkoppel 3,
  • 23881 Breitenfelde
https://tia-abwasser.de/en/

Bauhaus-Universität Weimar,
Weimar
